WindTre ZTE H389X techdata

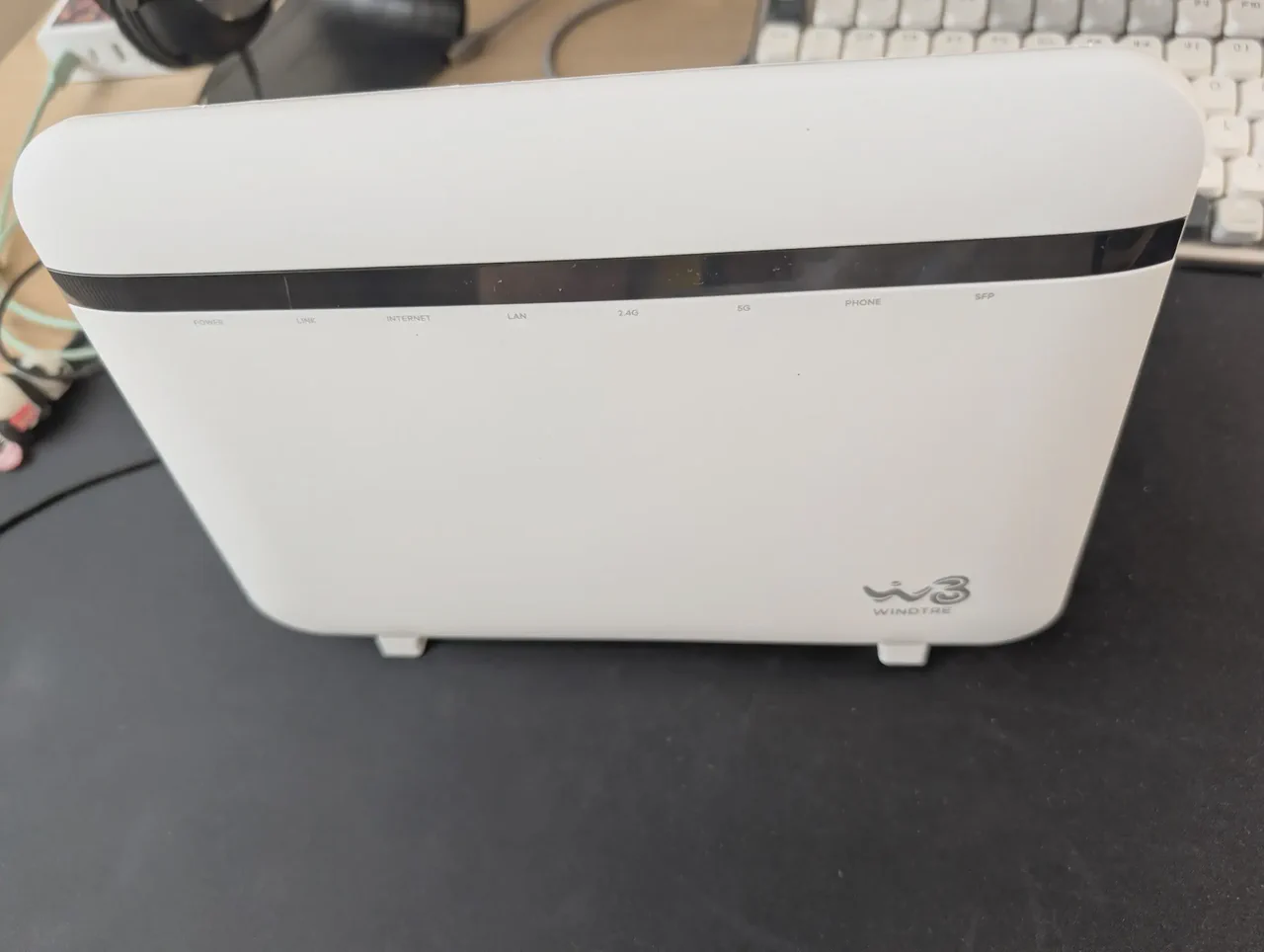

The ZTE H389X is a home router/Wi-Fi combo provided by the Italian ISP WindTre.
| Type | Chip | Notes |
|---|---|---|
| CPU | ZTE ZXIC ZX279132 | quad-core ARM Cortex-A53 @ 1.1 GHz (64-bit) |
| RAM | 512 MB | DDR3 |
| Flash | 512 MB NAND | HeYangTek HYF4GQ4UAACBE |
| WLAN | 2x Qualcomm QCN9000 | |
| SFP slot | ZTE ZX279132 PON controller |
There is some work underway to port a different ZTE CPU to the Linux kernel to add OpenWrt support here .
The software components used in the firmware that are subject to the GNU General Public License Version 2 or later are not publicly available on opensource.ztedevices.com/ . Obtaining the source code requires sending an email to tech.sp@zte.com.cn .
Firmware updates are pushed using TR069 but an image is available in ZTE italian website
.
The rootfs is encrypted with aes-128-cbc using the following key H389X933f3d47dbc.

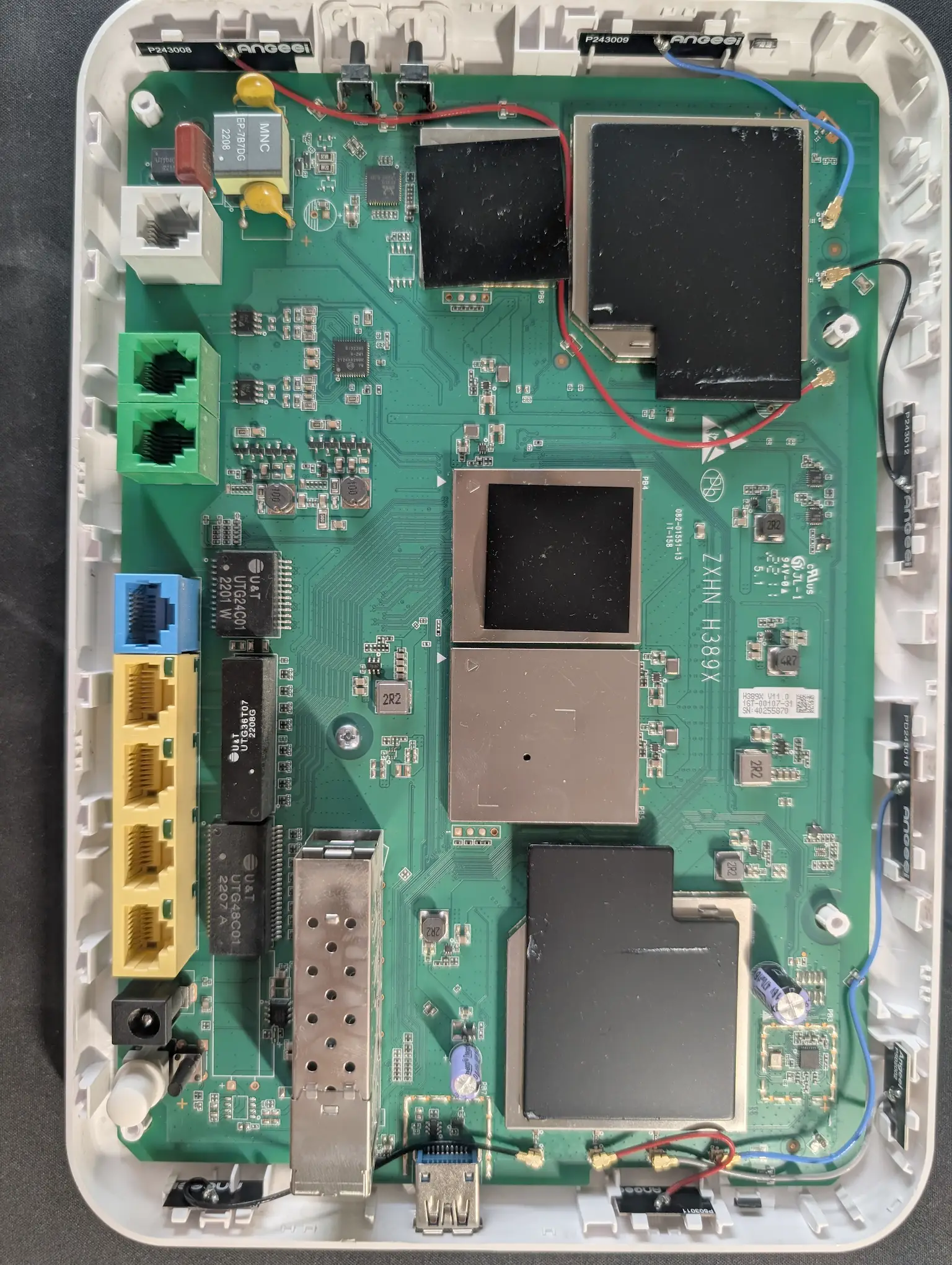

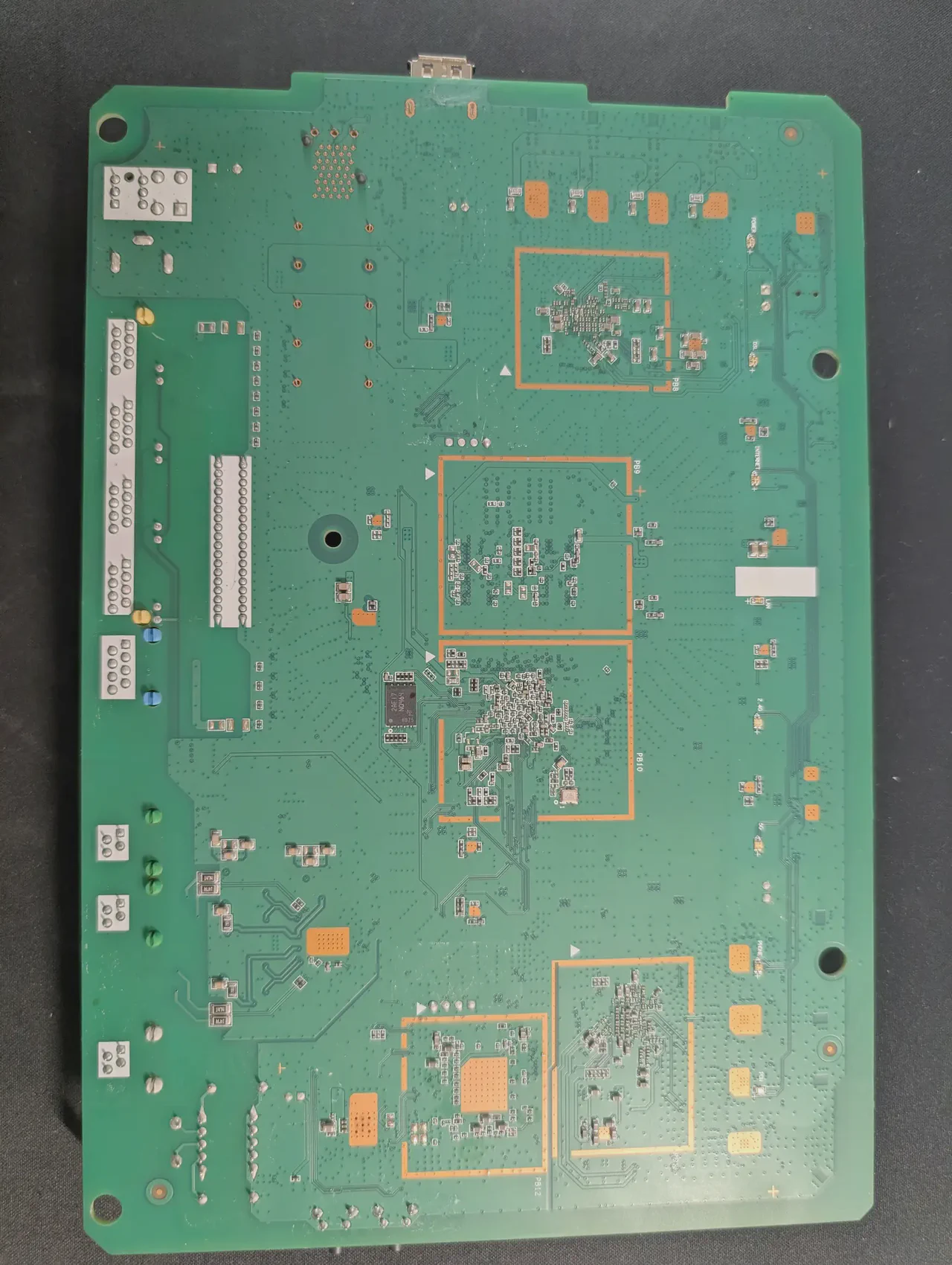

Photos of the internals
References
- orca.pet/wind3hub - Wind3 HUB notes (P7 firmware, U-Boot password, settings decryption)
- zteitalia.it/download/389x_hv1000_fv1100p9 - firmware download page (archive page )
- acwifi.net/17312.html - another device with the same CPU
